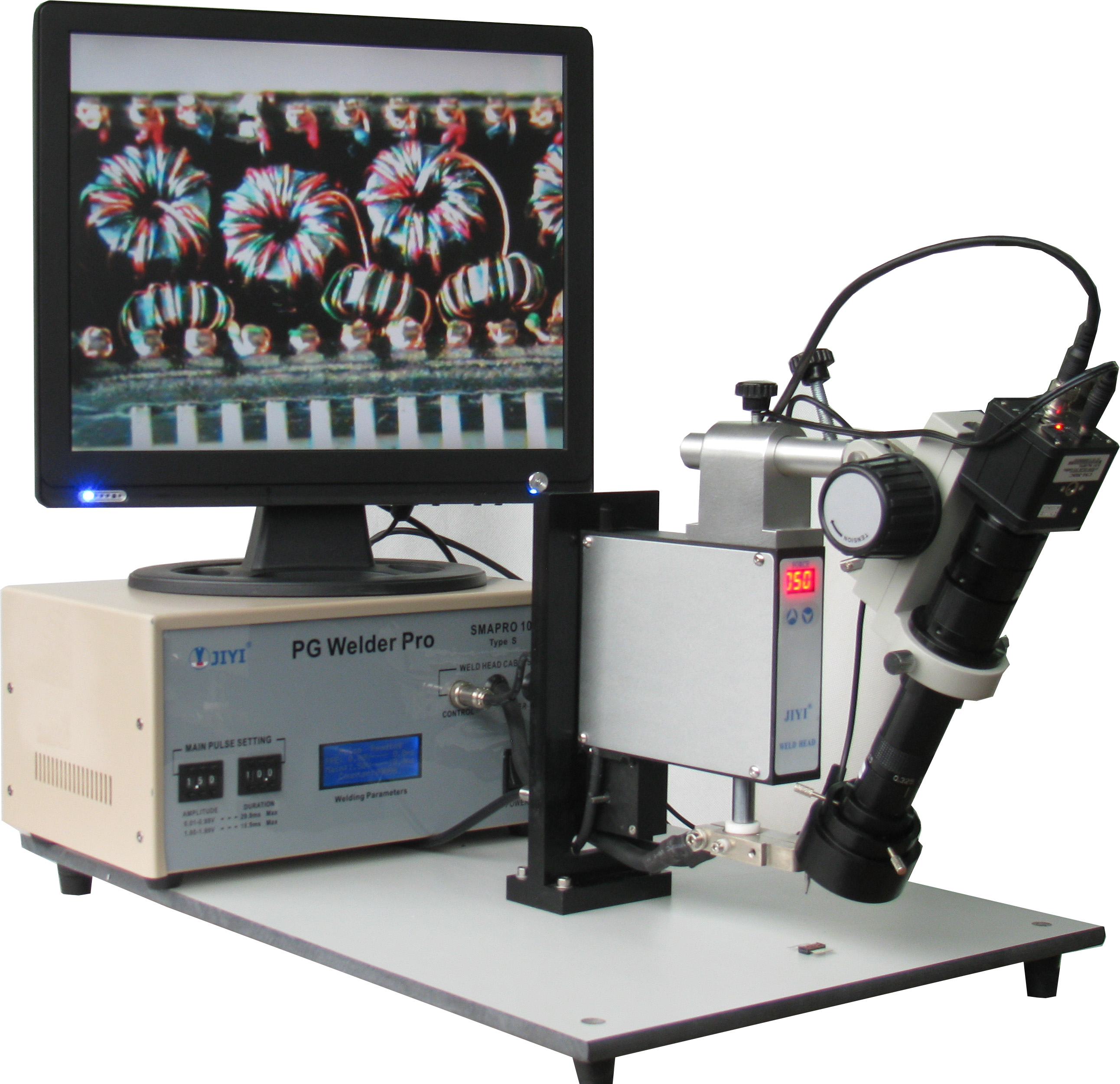

SMAPRO 100S (for production line use) - Available Models

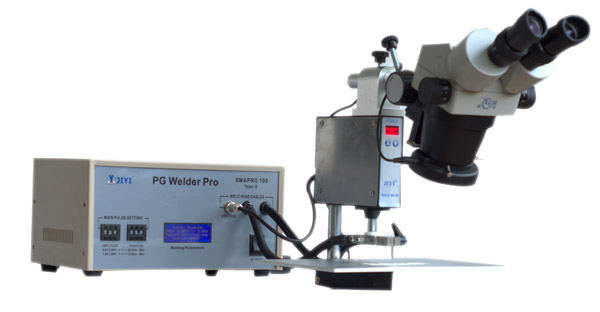

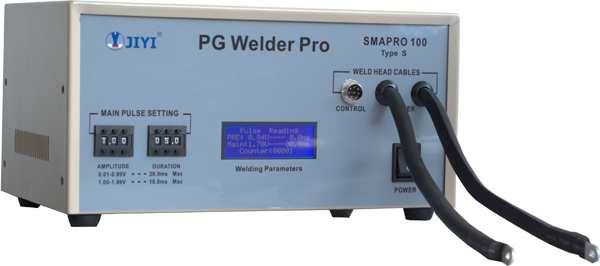

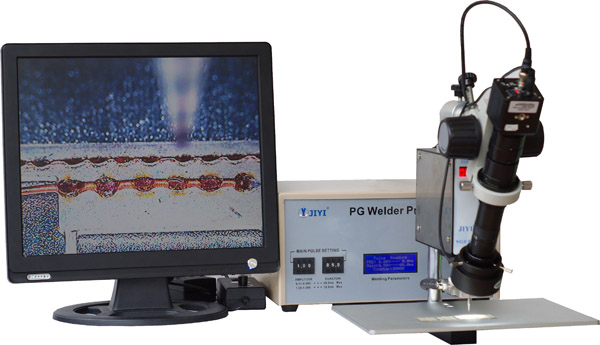

SMAPRO 100 Electronic Spot WelderThe SMAPRO 100 electronic spot welder is suitable for welding enameled wire or metal wire with a diameter of Φ0.02-0.30mm. It employs an advanced pressure sensor and electronic control system to precisely control the output voltage, time, and welding pressure. A built-in current sensor monitors the quality of each weld point. It features stable output, precise control of welding energy, small weld points, good conductivity, low signal attenuation, accurate welding head positioning, and long service life. It can directly weld enameled wire, all-metal wire, metal strips, metal sheets, solar cells, etc. It is widely used for contact welding of various micro-components and is currently widely used by manufacturers of surface mount inductors, surface mount transformers, micro-sounders, high-frequency communication components, inductive IC cards, watch coils, modules, etc.JIYI Electronic Spot Welding Machine Performance Indicators1 - Power input: 220V , 50HZ, 280VA (220V±5V) 115V, 60HZ, 280VA (115V±5V)2 - Maximum output pulse power: 540VA3 - Welding frequency: 120 times / minute4 - Welding pulse width: 0.1~29.9ms (subdivision accuracy 0.1ms)5 - Main pulse amplitude: 0.01~1.99V (subdivision accuracy 0.01V)6 - Welding pressure: 30-3000g or 50-4500g ( 10g fineness )7 - Welding wire diameter: Ф 0.02 mm — Ф 0.30 mm8 - External dimensions: Main unit 330 x 195 x 160 mm9 - Foot pedal cable length: 2.3 meters10 - Workbench dimensions: 400mm (width) x 600mm (length) x 12mm (thickness)11 - Total weight: 28 kgConfiguration Features1 - Configuration of main unit: Configuration of main unit, board frame, pedal, CCD and LCD display.2 - Precision welding: Suitable for precision welding, it is less likely to cause visual fatigue to workers and is easy to operate.3 - Automated production lines: Suitable for use in automated production lines, it does not require the installation of tables or drilling, and can be used directly on the production line.This product was entirely developed independently by our company and has a English invention patent ( see homepage for details ). You are welcome to visit our company to learn more or call us for inquiries.

SMAPRO 100A (Energy Storage Type)The SMAPRO 100 electronic spot welder is suitable for welding enameled wire or metal wire with a diameter of Φ0.02-0.30mm. It employs an advanced pressure sensor and electronic control system to precisely control the output voltage, time, and welding pressure. A built-in current sensor monitors the quality of each weld point. It features stable output, precise control of welding energy, small weld points, good conductivity, low signal attenuation, accurate welding head positioning, and long service life. It can directly weld enameled wire, all-metal wire, metal strips, metal sheets, solar cells, etc. It is widely used for contact welding of various micro-components and is currently widely used by manufacturers of surface mount inductors, surface mount transformers, micro-sounders, high-frequency communication components, inductive IC cards, watch coils, modules, etc.Detailed IntroductionJIYI Electronic Spot Welding Machine Performance Indicators1 - Power input: 220V, 50HZ, 280VA (220V±5V) 115V, 60HZ, 280VA (115V±5V)2 - Maximum output pulse power: 540VA3 - Welding frequency: 120 times / minute .4 - Welding pulse width: 0.1~29.9ms (subdivision accuracy 0.1ms)5 - Main pulse amplitude: 0.01~1.99V (subdivision accuracy 0.01V)6 - Welding pressure: 30-3000g or 50-4500g ( 10g fineness )7 - Welding wire diameter: Ф 0.02 mm — Ф 0.30 mm8 - External dimensions: Main unit 330 x 195 x 160 mm9 - Total weight: 25KgConfiguration Features1 - Configuration of main unit: Configuration of main unit, board frame, pedal, CCD and LCD display.2 - Precision welding: Suitable for precision welding, it is less likely to cause visual fatigue to workers and is easy to operate.This product was entirely developed independently by our company and has a English invention patent ( see homepage for details ). You are welcome to visit our company to learn more or call us for inquiries.

SMAPRO 100B (Energy Storage Type)The SMAPRO 100 electronic spot welder is suitable for welding enameled wire or metal wire with a diameter of Φ0.02-0.30mm. It employs an advanced pressure sensor and electronic control system to precisely control the output voltage, time, and welding pressure. A built-in current sensor monitors the quality of each weld point. It features stable output, precise control of welding energy, small weld points, good conductivity, low signal attenuation, accurate welding head positioning, and long service life. It can directly weld enameled wire, all-metal wire, metal strips, metal sheets, solar cells, etc. It is widely used for contact welding of various micro-components and is currently widely used by manufacturers of surface mount inductors, surface mount transformers, micro-sounders, high-frequency communication components, inductive IC cards, watch coils, modules, etc.Detailed introductionJIYI Electronic Spot Welding Machine Performance Indicators1. Power input: 220V, 50HZ, 280VA (220V±5V) 115V, 60HZ, 280VA (115V±5V) 2. Maximum output pulse power: 540VA3. Welding frequency: 120 times / minute                                                               4. Welding pulse width: 0.1~29.9ms (subdivision accuracy 0.1ms )5. Main pulse amplitude: 0.01~1.99V (subdivision accuracy 0.01V ) 6. Welding pressure: 30-3000g or 50-4500g (with a fineness of 10g )7. Welding wire diameter: Ф0.02 mm—Ф0.30 mm8. External dimensions: Main unit 330 x 195 x 160 mm9. Total weight: 26 kgConfiguration features:1. Configuration of main unit, plate stand, pedal, and microscope.2. Suitable for precision welding, especially for precision welding in scientific research, with clear visuals . This product was entirely developed independently by our company and has a English invention patent ( see homepage for details ). You are welcome to visit our company to learn more or call us for inquiries.

SMAPRO 100C (Energy Storage Type)The SMAPRO 100 electronic spot welder is suitable for welding enameled wire or metal wire with a diameter of Φ0.02-0.30mm. It employs an advanced pressure sensor and electronic control system to precisely control the output voltage, time, and welding pressure. A built-in current sensor monitors the quality of each weld point. It features stable output, precise control of welding energy, small weld points, good conductivity, low signal attenuation, accurate welding head positioning, and long service life. It can directly weld enameled wire, all-metal wire, metal strips, metal sheets, solar cells, etc. It is widely used for contact welding of various micro-components and is currently widely used by manufacturers of surface mount inductors, surface mount transformers, micro-sounders, high-frequency communication components, inductive IC cards, watch coils, modules, etc.Detailed IntroductionJIYI Electronic Spot Welding Machine Performance Indicators1 - Power Input: 220V, 50HZ, 280VA (220V ± 5V) 115V, 60HZ, 280VA (115V ± 5V)2 - Maximum output pulse power: 540VA3 - Welding frequency: 120 times / minute4 - Welding pulse width: 0.1~29.9ms (subdivision accuracy 0.1ms)5 - Main pulse amplitude: 0.01~1.99V (subdivision accuracy 0.01V)6 - Welding pressure: 30-3000g or 50-4500g ( 10g fineness )7 - Welding wire diameter: Ф 0.02 mm — Ф 0.30 mm8 - External dimensions: Main unit 330 x 195 x 160 mm9 - Total weight: 15KgConfiguration Features1 - Configuration of main unit: Configuration of main unit, board frame, and pedal.2 - Suitable for rough welding.This product was entirely developed independently by our company and has a English invention patent ( see homepage for details ). You are welcome to visit our company to learn more or call us for inquiries.
