Dual-Pulse Electronic Spot Welding Machine - Available Models

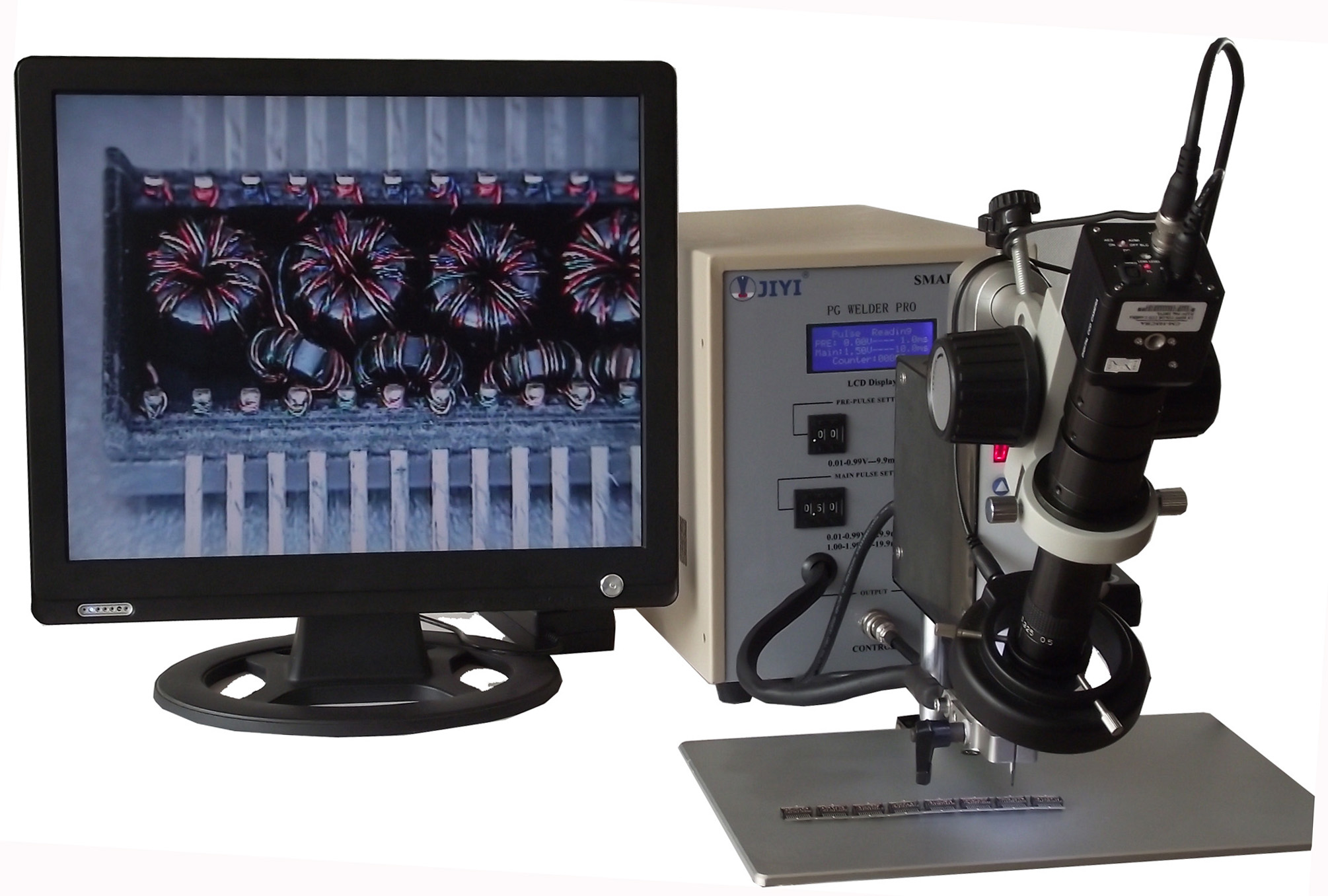

Model: SMAPRO 150D (Energy Storage Type)The SMAPRO 150D electronic spot welder is suitable for welding enameled wire or metal wire with a diameter of Φ0.02-0.45mm. It employs advanced dual-pulse control technology with slow-rising and slow-falling preheating and enamel removal pulses, effectively reducing spatter during welding and extending the life of the welding head. Using a pressure sensor and electronic control system, it precisely controls the output voltage, time, and welding pressure. A built-in current sensor monitors the quality of each weld point. It features stable output, precise control of welding energy, small weld points, good conductivity, low signal attenuation, accurate welding head positioning, and long service life. It can directly weld enameled wire, all-metal wire, metal strips, metal sheets, solar cells, etc. It is widely used for contact welding of various micro-components and is currently widely used by manufacturers of surface mount inductors, surface mount transformers, micro-sounders, high-frequency communication components, inductive IC cards, watch coils, modules, etc.Detailed IntroductionJIYI Electronic Spot Welding Machine Performance Indicators1 - Power input: 220V, 50HZ, 280VA (220V±5V) 115V, 60HZ, 280VA (115V±5V)2 - Maximum output pulse power: 1000VA3 - Welding frequency: 120 times / minute4 - Preheating paint removal pulse width: 0.1~9.9ms (subdivision accuracy 0.1ms)5 - Preheating paint removal pulse amplitude: 0.01~0.99V (subdivision accuracy 0.01V)6 - Welding pulse width: 0.1~29.9ms (subdivision accuracy 0.1ms)7 - Main pulse amplitude: 0.01~1.99V (subdivision accuracy 0.01V)8 - Welding pressure: 30-3000g or 50-4500g (with a fineness of 10g)9 - Welding wire diameter: Ф 0.02 mm — Ф 0.45 mm10 - Operating modes: Three operating modes are selectable: constant current, constant voltage, and constant power.11 - Welding consistency: By controlling the constant current, constant voltage, and constant power, the consistency of welding is greatly improved, and spatter is reduced to a minimum.12 - Preheating slow-rise function: Unique preheating slow-rise function (each pulse can be set individually), ensuring a uniform temperature rise of the welded workpiece from cold to hot, resulting in stronger welds.13 - External dimensions: Main unit 205 x 380 x 260 mm14 - Total weight: 28KgConfiguration Features1 - Main unit configuration: Configuration of main unit, board frame, pedal, CCD and LCD display.2 - Precision welding: Suitable for precision welding, it is less likely to cause visual fatigue to workers and is easy to operate.This product was developed entirely independently by our company and has one English invention patent (the original of the invention patent has been granted to our company).
